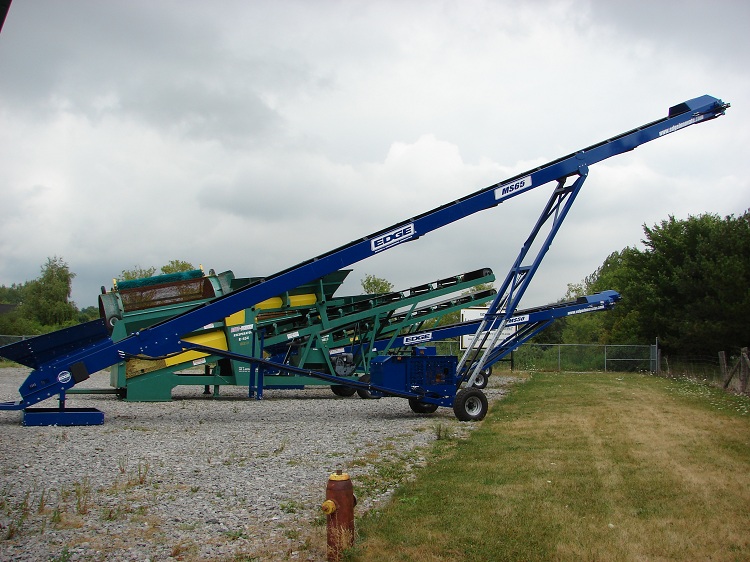

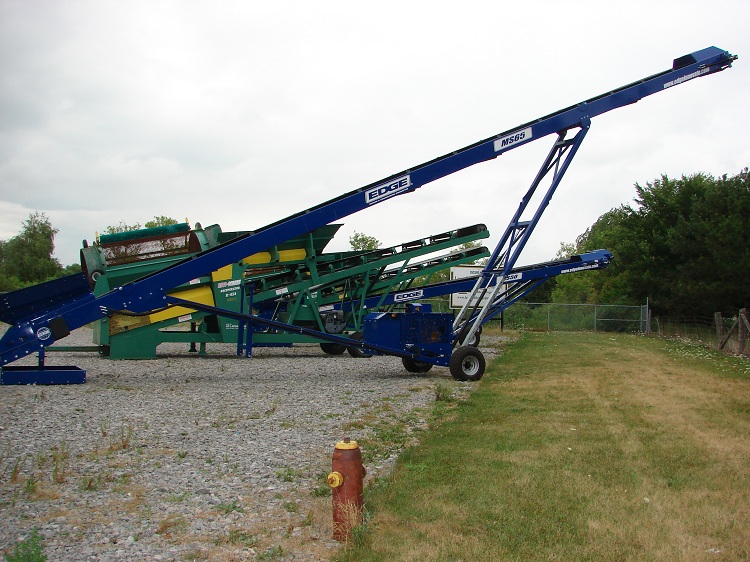

Model MS65

For our Ontario stock, the Edge model MS65 portable 65' radial stackers are equipped with hydraulic or diesel engine drive, 32" vulcanized belts, hydraulic raise and lower, self lubricating triple sealed bearings, optional extended feed hopper, pintle hitch and 5th. wheel pin. The hydraulically powered conveyors can be operated from most trommel or flat deck screening plants and are equipped with a plant mounted hydraulic control valve bank and a 30' hose coupling kit with quick disconnects. The diesel driven plants are powered by a plant mounted 2.2 Caterpillar diesel engine. This high capacity stacker has a stockpile range from a minimum of 14' 2" to a maximum of 30' 2".




Available Options
